Product Details
Basic Info
TPS40170RGYR
- Manufacturer :
- Description :
- Quantity :
- Date Code :
- Supplier Grade:
- Location :
- Uploaded Time :
Detail Attributes
- Wide Input Voltage Range from 4.5 V to 60 V
- 600 mV Reference Voltage with 1% Accuracy
- Programmable UVLO and Hysteresis
- Voltage Mode Control With Voltage Feed Forward
- Programmable Frequency Between 100 kHz and 600 kHz
- Bi-directional -Frequency Synchronization With Master/Slave Option
- Low-side FET Sensing Overcurrent Protection and High-Side FET Sensing Short-Circuit Protection With Integrated Thermal Compensation
- Programmable Closed Loop Soft-Start
- Supports Pre-Biased Outputs
- Thermal Shutdown at 165°C with Hysteresis
- Voltage Tracking
- Powergood
- ENABLE with 1-µA Low Current Shutdown
- 8.0-V and 3.3-V LDO Output
- Integrated Bootstrap Diode

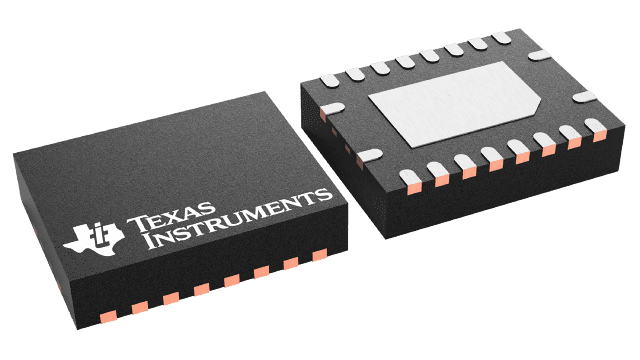

- 20-Pin 3.5 mm × 4.5 mm VQFN (RGY) Package
- Create a Custom Design with WEBENCH Tools
