Product Details
Basic Info
BQ28Z610DRZR
- Manufacturer :
- Description :
- Quantity :
- Date Code :
- Supplier Grade:
- Location :
- Uploaded Time :
Detail Attributes
- Autonomous battery charging control, using a dedicated MASTER mode I2C interface
- Cell balancing with an internal bypass to optimize battery health
- A high-side protection N-CH FET drive enables serial bus communication during fault conditions
- Programmable protection levels for voltage, current, and temperature
- Analog front-end with two independent ADCs
- Support for simultaneous current and voltage sampling
- High-accuracy coulomb counter with input offset error < 1 µV (typical)
- Supports down to 1-mΩ current sense resistor while capable of 1-mA current measurement
- Supports battery trip point (BTP) function for Windows integration
- SHA-1 authentication responder for increased battery pack security
- 400-kHz I2C bus communications interface for high-speed programming and data access

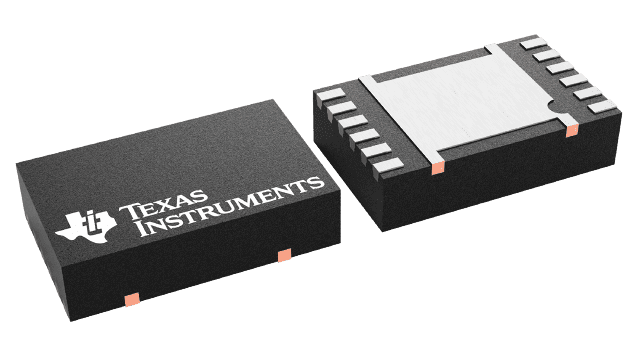

- Compact 12-pin VSON package (DRZ)
