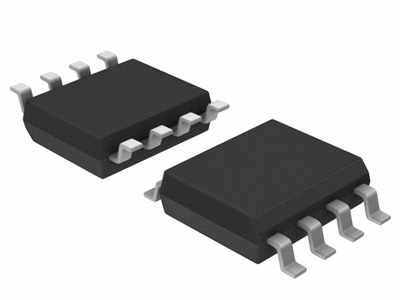

TJA1021T20CM,118

PDF download

Detail Attributes

2.1 General

 LIN 2.x/ISO 17987-4:2016 (12 V)/SAE J2602 compliant

 Baud rate up to 20 kBd (/20 variant)

 Very low ElectroMagnetic Emission (EME)

 High ElectroMagnetic Immunity (EMI)

 Passive behavior in unpowered state

 Input levels compatible with 3.3 V and 5 V devices

 Integrated termination resistor for LIN slave applications

 Wake-up source recognition (local or remote)

 K-line compatible

 Pin-to-pin compatible with TJA1020 and MC33662(B)

 Available in SO8 and HVSON8 packages

 Leadless HVSON8 package (3.0 mm × 3.0 mm) with low thermal resistance

supporting Automated Optical Inspection (AOI) capability

2.2 Low power management

 Very low current consumption in Sleep mode with local and remote wake-up

Product data sheet Rev. 8 — 18 December 2018 2 of 25

NXP Semiconductors

TJA1021

ISO 17987/LIN 2.x/SAE J2602 transceiver

2.3 Protection mechanisms

 High ESD robustness: 6 kV according to IEC 61000-4-2 for pins LIN, VBAT and

WAKE_N

 Transmit data (TXD) dominant time-out function

 Bus terminal and battery pin protected against transients in the automotive

environment (ISO 7637)

 Bus terminal short-circuit proof to battery and ground

 Thermally protected
