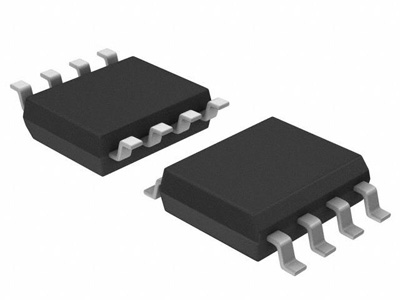

TJA1040TCM,118

PDF download

Detail Attributes

• Fully compatible with the ISO 11898 standard

• High speed (up to 1 MBaud)

• Very low-current standby mode with remote wake-up

capability via the bus

• Very low ElectroMagnetic Emission (EME)

• Differential receiver with high common-mode range for

ElectroMagnetic Immunity (EMI)

• Transceiver in unpowered state disengages from the

bus (zero load)

• Input levels compatible with 3.3 V and 5 V devices

• Voltage source for stabilizing the recessive bus level if

split termination is used (further improvement of EME)

• At least 110 nodes can be connected

• Transmit Data (TXD) dominant time-out function

• Bus pins protected against transients in automotive

environments

• Bus pins and pin SPLIT short-circuit proof to battery and

ground

• Thermally protected
