TJA1042T1J

PDF download

Detail Attributes

2.1 General

 ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5 compliant

 Timing guaranteed for data rates up to 5 Mbit/s in the CAN FD fast phase

 Suitable for 12 V and 24 V systems

 Low ElectroMagnetic Emission (EME) and high ElectroMagnetic Immunity (EMI)

 VIO input on TJA1042T/3 and TJA1042TK/3 allows for direct interfacing with 3 V to 5 V

microcontrollers

 SPLIT voltage output on TJA1042T for stabilizing the recessive bus level

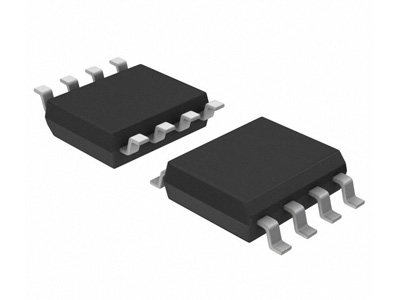

 Available in SO8 package and leadless HVSON8 package (3.0 mm  3.0 mm) with

improved Automated Optical Inspection (AOI) capability

 Dark green product (halogen free and Restriction of Hazardous Substances (RoHS)

compliant)

 AEC-Q100 qualified

TJA1042

High-speed CAN transceiver with Standby mode

Rev. 10 — 24 November 2017

Product data sheet

Downloaded From Oneyac.comTJA1042

All information provided in this document is subject to legal disclaimers.

Product data sheet

Rev. 10 — 24 November 2017

2 of 26

NXP Semiconductors

TJA1042

High-speed CAN transceiver with Standby mode

2.2 Predictable and fail-safe behavior

 Very low-current Standby mode with host and bus wake-up capability

 Functional behavior predictable under all supply conditions

 Transceiver disengages from the bus when not powered up (zero load)

 Transmit Data (TXD) dominant time-out function

 Bus-dominant time-out function in Standby mode

 Undervoltage detection on pins VCC and VIO

2.3 Protections

 High ESD handling capability on the bus pins (8 kV)

 High voltage robustness on CAN pins (58 V)

 Bus pins protected against transients in automotive environments

 Thermally protected
