Product Details
Basic Info

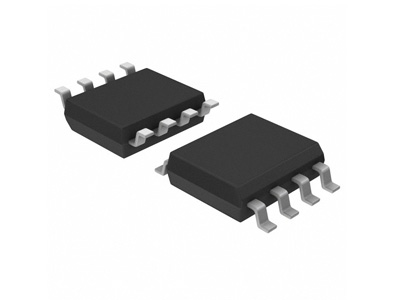

TJA1051T31J
- Manufacturer :
- Description :
- Quantity :
- Date Code :
- Supplier Grade:
- Location :
- Uploaded Time :
Detail Attributes
2.1 General
ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5 compliant
Timing guaranteed for data rates up to 5 Mbit/s in the CAN FD fast phase
Suitable for 12 V and 24 V systems
Low ElectroMagnetic Emission (EME) and high ElectroMagnetic Immunity (EMI)
VIO input on TJA1051T/3 and TJA1051TK/3 allows for direct interfacing with 3 V to 5 V
microcontrollers (available in SO8 and very small HVSON8 packages respectively)
EN input on TJA1051T/E allows the microcontroller to switch the transceiver to a very
low-current Off mode
Available in SO8 package or leadless HVSON8 package (3.0 mm 3.0 mm) with
improved Automated Optical Inspection (AOI) capability
Dark green product (halogen free and Restriction of Hazardous Substances (RoHS)
compliant)
AEC-Q100 qualified
TJA1051
High-speed CAN transceiver
Rev. 9 — 28 November 2017
Product data sheet
Downloaded From Oneyac.comTJA1051
All information provided in this document is subject to legal disclaimers.
© NXP N.V. 2017. All rights reserved.
Product data sheet
Rev. 9 — 28 November 2017
2 of 25
NXP Semiconductors
TJA1051
High-speed CAN transceiver
2.2 Low-power management
Functional behavior predictable under all supply conditions
Transceiver disengages from the bus when not powered up (zero load)
2.3 Protection
High ElectroStatic Discharge (ESD) handling capability on the bus pins
Bus pins protected against transients in automotive environments
Transmit Data (TXD) dominant time-out function
Undervoltage detection on pins VCC and VIO
Thermally protected
